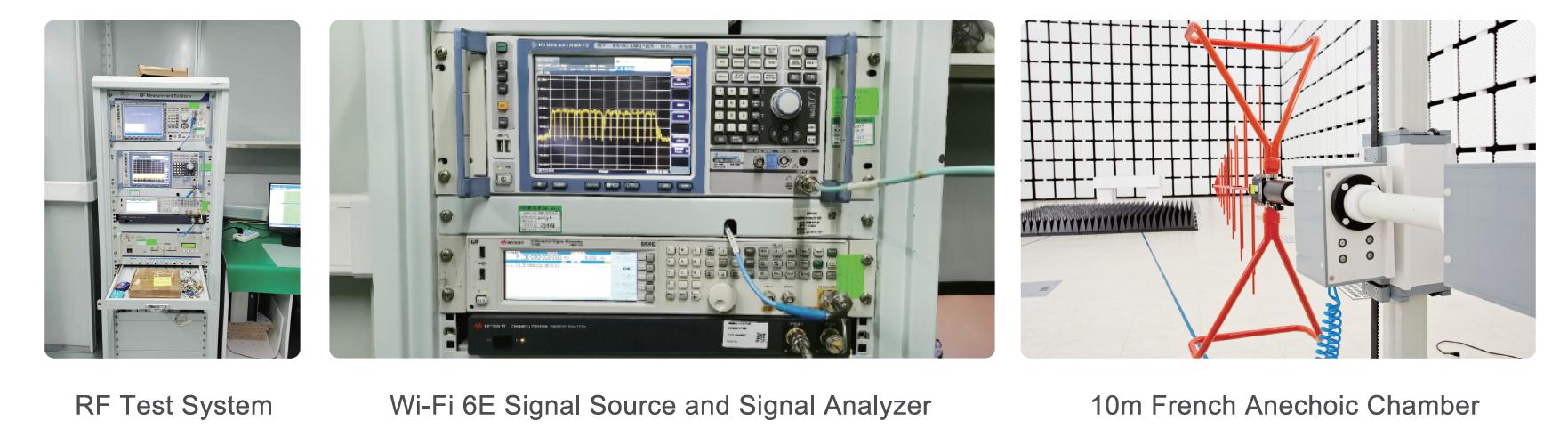

Wi Fi 6E Test Lab

Wi-Fi 6E is a new entry into the Wi-Fi 6 technology, capable of operating at 9.6Gbps in the 6 GHZ band. The "E" in Wi-Fi 6E stands for Extended, which refers to the extension of the available frequency range. Wi-Fi 5 uses frequencies in the 2.4GHz and 5GHz bands. Wi-Fi 6E extends to the 6GHz band. Wi-Fi 5 can reach a maximum throughput of 3.5 Gbps, while Wi-Fi 6E can reach a speed of 9.6Gbps. Wi-Fi 6E offers greater bandwidth and overall network improvements for the latest Wi-Fi devices. With the new Wi-Fi 6E technology innovations and products accelerating to market, this is critical for customers to successfully bring future-oriented wireless products to market. ATC has been authorized by CNAS&CMA in China, EMSD in Hong Kong, China, A2LA in the US, FCC, ISED in Canada, China's Import and Export Commodity inspection and certification authority and many other international certification authorities. ATC has accumulated rich experience in testing and certification in the field of wireless products over the years. Can provide customers with professional one-stop testing and certification services, so that your products smoothly into the global target market!

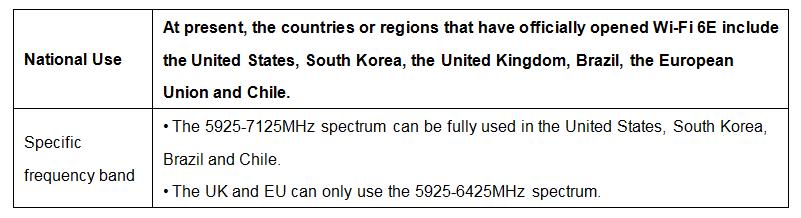

1. Usage and Specific Frequency Band of Wi-Fi 6E

2. Testing Requirements for US Certification

Test standard: 47 CFR Part 15.407, KDB 987594 D01, KDB 987594 D02, etc.

Test items:Maximum EIRP (DBM), power spectral density (DBM / MHz), antenna elevation (DBM) with EIRP higher than 30 degrees, basic bandwidth, automatic frequency coordination (AFC), transmission outside 6GHz frequency band (EIRP) (unrestricted frequency band), channel shielding, channel competition protocol, geographic positioning capability, etc.

Product type division：

3. Test Requirements for EU Certification

Test standard: ETSI EN 303 687, etc.

Test items: Nominal center frequency and nominal bandwidth, RF output power (EIRP, DBM), power density (EIRP, DBM / MHz), out of band transmission, transmission spurious, in band transmission, reception spurious, adaptability, short control signal, receiver blocking, receiver blocking, receiver adjacent channel selectivity, power supply, antenna design, etc.

Product type division:
